Ventilation Fans

portfolio img

Crystal, specializes in crafting bespoke Ventilation fans renowned for their world-class quality, meticulously designed to meet project specifications. Our unwavering commitment to delivering top-notch quality and reliability is the foundation of our mission.

Ventilation fans are essential for maintaining a healthy indoor environment in both residential and commercial spaces. These fans serve the critical function of bringing fresh outdoor air indoors, ensuring proper air circulation, and preventing the build-up of stuffy, oxygen-depleted air. In the absence of ventilation, occupants are forced to breathe in stagnant, less-than-fresh air.

Our Ventilation Fans are engineered to excel, offering efficient air circulation and ventilation. We manufacture them in an AMCA certified, state-of-the-art facility, marked by full vertical integration and equipped with world-class machinery. This guarantees that our Ventilation Fans not only meet industry standards but also exceed expectations, delivering exceptional performance and unwavering reliability for your projects.

Crystal Fans are for custom Ventilation Fans that provide superior indoor air quality, optimal air circulation, and the assurance of world-class quality and reliability at every turn.

Types

Axial Flow Fans
Jet Fans
Fresh Air
Air Exhaust
Circular Inline Fans
Rectangular Inline Fans
Propeller Fans

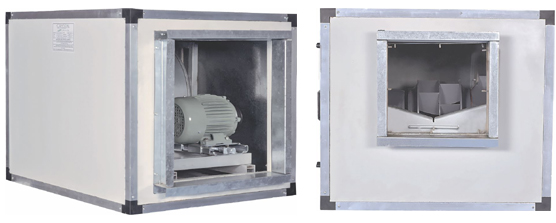

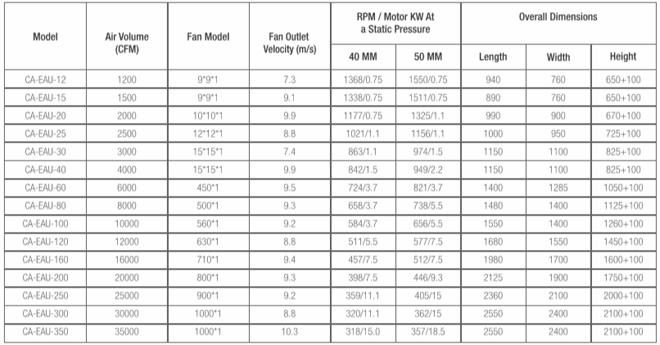

Air Exhaust

Capacity Range:
1000 CFM to 100000 CFM

Types:
Ceiling Suspended
Floor Mounted

Applications:
Hospital, Hotel Kitchens, Colleges and many other uses application

Features:
Highly suitable for the exhaust
Specially designed for pharmaceutical

Features:
Cowl
Dampers

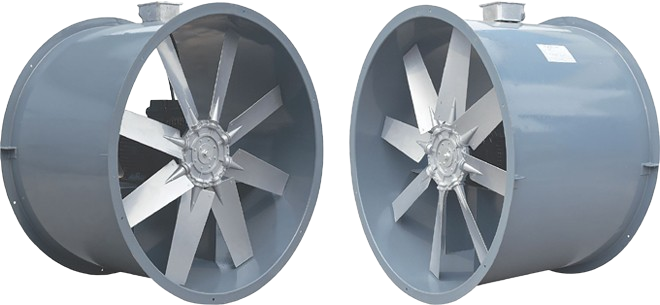

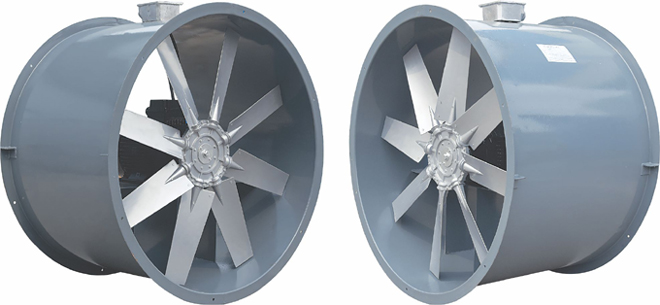

Axial Flow Fans

Crystal Axial Flow fans are designed for air ventilation in commercial or industrial building and are available from 315 mm dia to 1800 mm dia that covers the cfm upto 100000 The blade pitch is field adjustable to accommodate system changes.

The casing design and construction are well suited for indoor or outdoor applications and can be easily installed inducted or non-ducted systems Fans and blades are designed to reduce operating cost with improved efficiency design offers inherently lower sound level than other axial fans.

Types:
Axial flow fan (Normal Series)
Axial flow fan (High Temp. Series for 250 & 300 upto 2 hrs)

Application:
General Ventilation
Emergency Smoke and Heat Exhaust
Car Ventilation / Basement
Stairwell pressurization

Options:
Pedestal Stand | Bird Screen | Sound Attenuator

Construction:
Fan casing is made of heavy gauge M.S. Sheet. It has flanges at both ends for easy fixing Impellers is made of Die cast aluminium having Aerofoil design with adjustable pitch angle Maintenance free reliable IEC motors

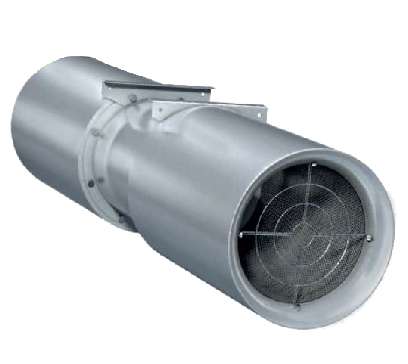

Jet Fans

Features

  • Increased performance with maximum thrust.
  • Low noise.
  • Cost effective solutions.
  • Professional system design, advice and simulation.
  • For emergency and general use.

Electrical Supply
  • 380-420V/50-60Hz/

Temperature Range
  • Suitable for temperatures up to 300°C for 2 hours

CJF Series

Feature
Mounted with airfoil blades for great efficiency and low sound, the impellers of jet fans have hubs and blades made of high- strength die-cast aluminum alloys. Each impeller has undergone heat treatment, X-ray flaw detection, tensile test, metal processing and dynamic balancing tests to ensure reliable quality. The blade angles are statically adjustable.

Motor
The motor is air cooled, squirrel cage and sealed type resistant to damp heat. It is IP55 rated with Class H insulation; Internationally famous bearing brands are used, such as SKF and NSK; The motor lead wire can be connected to the junction box on the fan stack; The grease tube leading all the way from the grease nipple to the fan housing makes greasing and maintenance much easier.

Fan Housing and Mounting Brackets
The laser cutting and plasma cutting processes are used. The housing is automatically welded and formed by spinning. The surface is hot-dip galvanized or coated for better fan strength and corrosion resistance. The mounting brackets are designed based on actual field conditions.

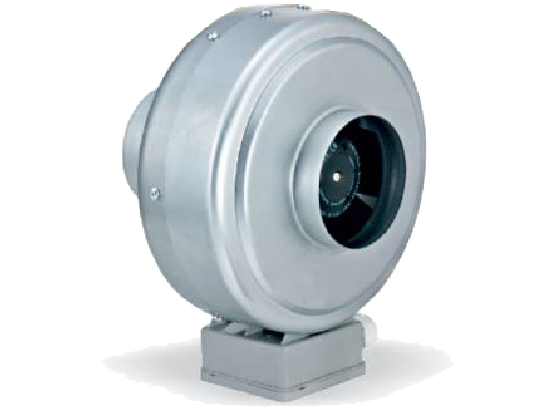

Circular Inline Fans

Features

  • Duct fan with circular connections.
  • Proven performance and reliability.
  • Compact with high capacity and efficiency.
  • Low sound levels.
  • Impeller with backward curves blades.
  • The external rotor motor has maintenance-free sealed ball-bearings.
  • Integrated motor protection.

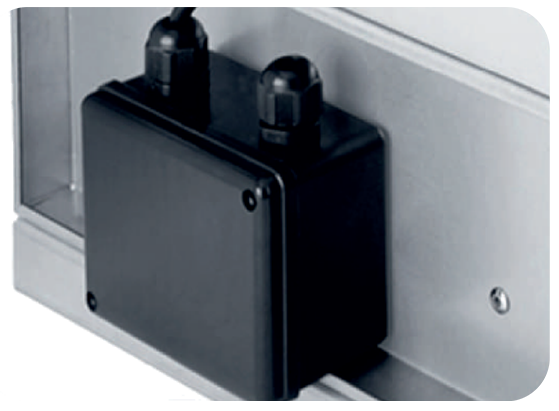

  • Junction box has enclosure class IP 54.
  • Fan housing is manufactured from galvanized sheet steel.
  • Easy installation in any position.

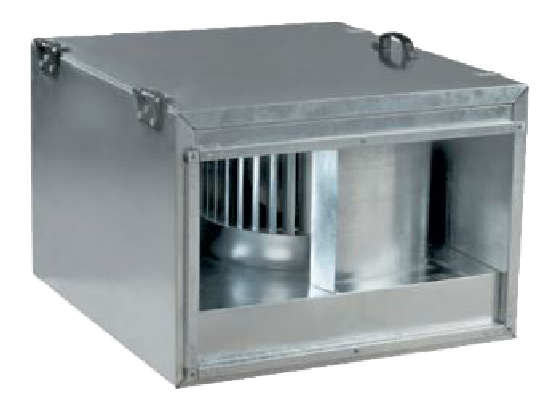

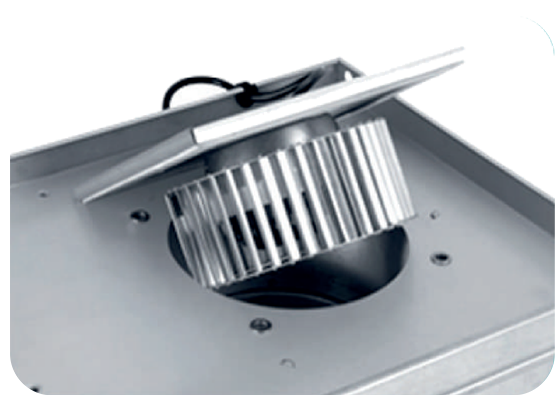

Rectangular Inline Fans

Features

  • Rust Resistant All GI Casing.
  • Light Weight Dynamically Balanced Aluminum Impeller.
  • Direct Driven.
  • High Quality Long Life Motor.
  • Vibration-Free and Silent Operation.
  • Quick and Easy Installation & Service.

CRI Series

Crystal CRI Series
Direct Driven Rectangular Inline Fans are design for the use to intake & exhaust through ventilation system. Casing of inline fans are made of gi heavy gauge with aluminium impeller, wide range of models available are 160 mm to 315 mm all fans are dynamically balanced to ensure minimum and vibration free airflow the casing also have the provision of hinged access door for inspection and service purpose

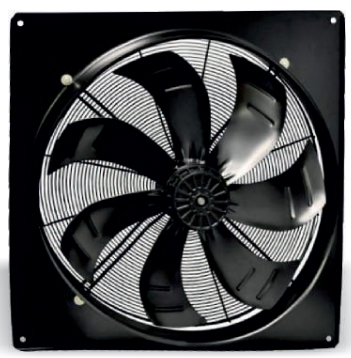

Propeller Fans

Features

  • Strongly built.
  • Rust resistance.
  • Long operational life.







Specifications
  • Flow rate up to: 10,800/- m3/h
  • Single & 3-phase: IP 54
  • Pressure up to: 300 Pa

Fresh Air

At Crystal, we specialize in crafting bespoke Treated Fresh Air units known for their world-class quality, meticulously tailored to meet the unique specifications of each project. Our unwavering commitment to providing the highest quality and reliability is the cornerstone of our mission.

Treated Fresh Air, a crucial component of airflow management, is defined by its purpose: to introduce fresh outdoor air into a space for ventilation. Our Treated Fresh Air Units are designed with modular construction, offering the flexibility to add modules for heating, cooling, humidification, high-efficiency particulate filters, gas phase filters, sound attenuation, mixing, and more, ensuring they cater to your specific requirements.

What sets our units apart is our commitment to quality and precision. We manufacture them in an ISO-certified, state-of-the-art, fully vertically integrated facility, equipped with world-class machinery. This guarantees that our Treated Fresh Air Units not only meet but exceed industry standards, delivering optimal performance and reliability for your projects. Crystal Treated Fresh Air Units that provide exceptional ventilation solutions, flexibility, and the assurance of world-class quality and reliability at every turn.

Types
-For Fresh Air

1. Coiling Type
2. Floor Mounted

Applications: Hospital, Hotel, Colleges and many other uses

Features
-For Fresh Air

1. Highly suitable for fresh air
2. Specially designed for pharmaceutical
3. Available with pre-filters

Options: Cowl, Fine Filters, Hepa Filters, Dampers

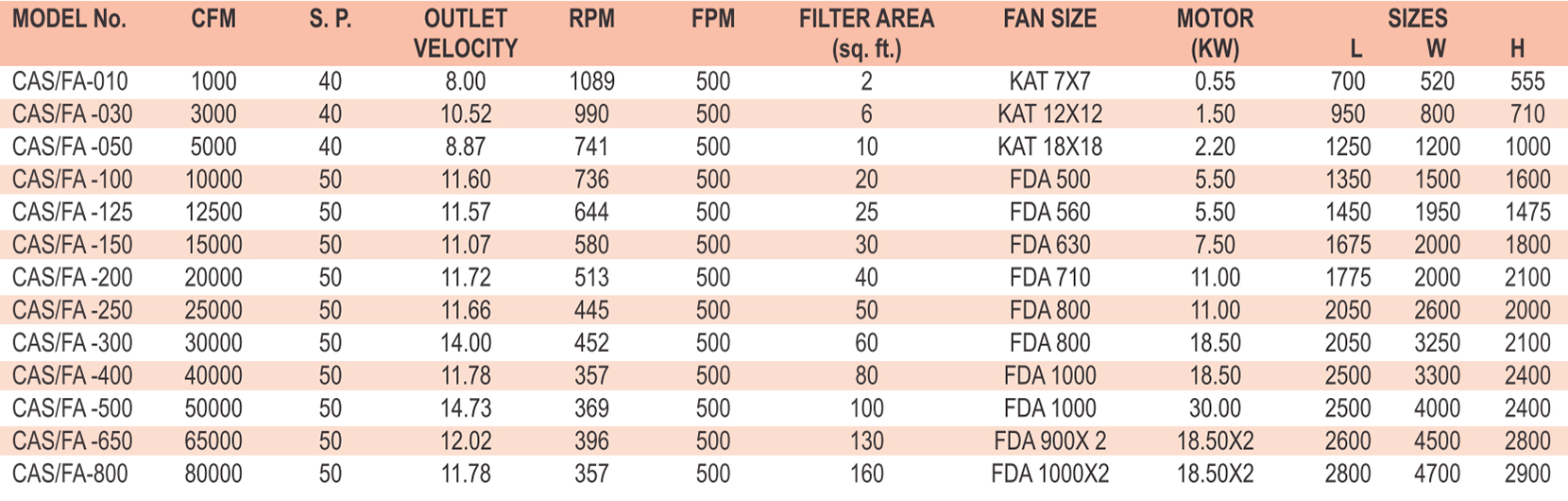

QUICK SELECTION CHART OF FRESH AIR UNITS
