Crystal Air Systems

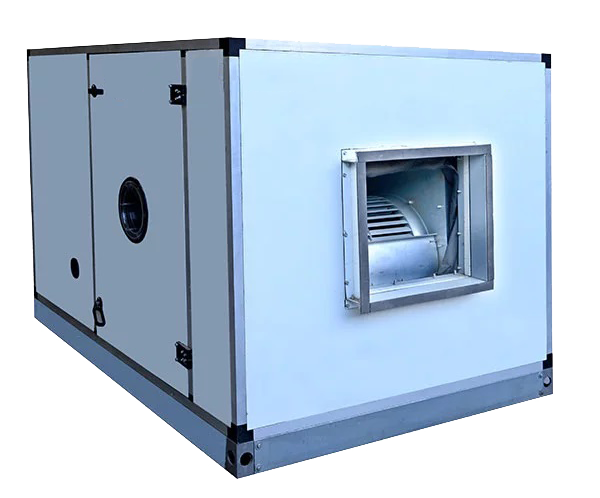

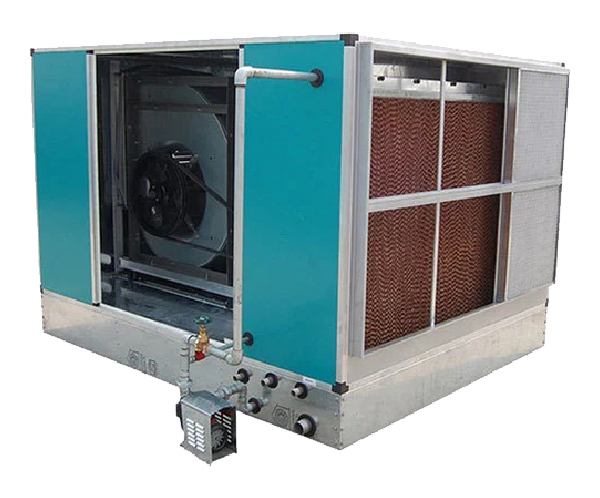

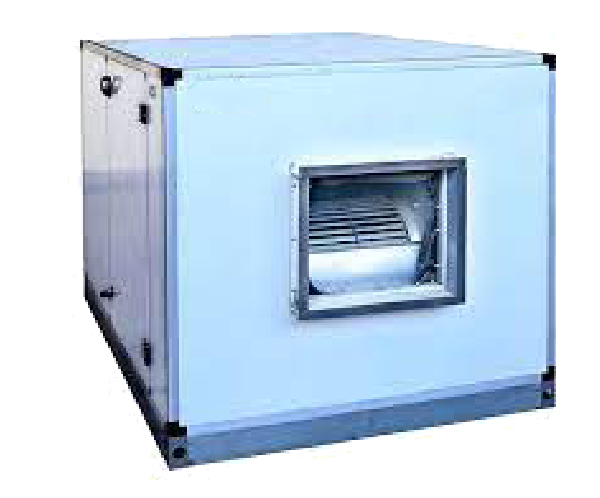

Here At Crystal, we take pride in crafting tailor-made Air Washer units of exceptional quality designed to precisely align with project specifications. Our unwavering commitment to delivering superior quality and reliability is central to our mission.Our Air Washer units stand as a testament to our dedication to excellence. They boast the capability to achieve high saturation efficiencies while ensuring a quick and hassle-free installation process, thanks to our factory-fabricated machines.

Our units are thoroughly tested for mechanical strength, air leakage, and filter bypass leakage, demonstrating their resilience and efficiency. They have earned appreciation and are running at many prestigious projects. Proving making them to be world-class products that meet the highest industry standards, further affirming their quality and reliability.

Types

Indirect -Direct Evporative colling systems

Application

Hotel, Hospital, Industry, Colleges, Theater

Feature

Fill Type system can attain very high saturation efficiencies as against conventional system

Compact pre-fabricated design to take less space, consuming only 40% of conventional systems.
Power consumption negligible as compared to spray machince due to low pump power and low pressure drop.
Quick installation as machine is factory fabricated and tested and has flexibility in regard to re-location at a later date.

Options

Double/Single skin
Masonry type
Water Tank in Stainless Steel-202/304
Cooling Pad 200/300mm
PVC Elimator
Water Pump
Intake louvers and bird screen
