Air Handling Unit
Capacity Range:
1000 CFM (2.5 TR) upto 80000 CFM (100 TR).
Types:

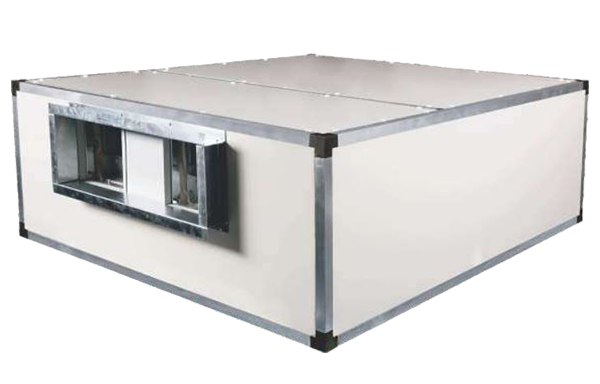

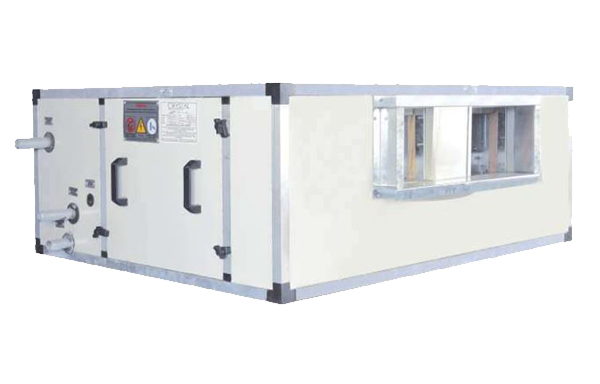

1. Ceiling Suspended type (Air Handling Unit)
2. Vertical Type (Air Handling Unit)

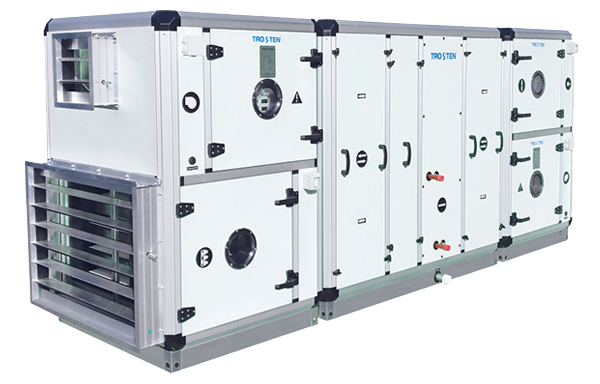

3. Horizontal Type (Air Handling Unit)
4. TFA (Special Air Treatment Unit)
Feature:
1. Casing made out of pre coated / Galvanised/Powder coated Sheets (GL).
2. Usage of Heavy duty Extruded Aluminum profile construction.
3. Sturdy access doors with extra strong locks, handles and knobs for leak proof fittings.
4. 25/50 MM thick External and internal flush panels.
5. Panels are filled with thick pressure injected polyurethane foam, having 40 kg/ cum density.
6. High efficiency, AMCA Certified, Imported Blowers are used.
7. Forward curved blowers for normal applications and back.
8. Ward curved for high resistance applications.
9. Thermal break construction.
Options:
1. Thermal break with covered profile
2. Heating coil
3. Face and pass damper
4. Humidifier
5. Air mixing chamber
6. S.S. drain tray
