Feature

Duct fan with circular connections.
Proven performance and reliability.
Compact with high capacity and efficiency.
Low sound levels.
Impeller with backward curves blades.
The external rotor motor has maintenance-freesealed ball-bearings.
Integrated motor protection.
Junction box has enclosure class IP54.
Fan housing is manufactured from galvanized sheet steel.
Easy installation in any position.

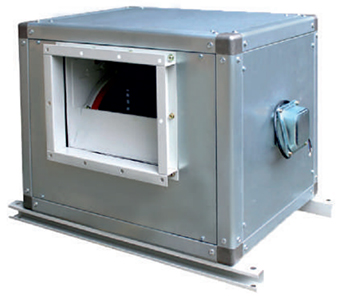

Feature

High Efficiency DIDW impeller with GL scroll.
High quality Gl cabinet, with inlet and outlet spigots & mounting brackets.
Access Panels for easy maintenance and inspections.
Single phase, Squirrel cage induction motors with long life bearings.
Multi speed motors with speed regulator.
Inlet is equipped with a provision for slide in filters.

Feature

High Efficiency DIDW impeller with GL scroll.
High quality Gl cabinet, with inlet and outlet spigots & mounting brackets.
Access Panels for easy maintenance and inspections.
Single phase, Squirrel cage induction motors with long life bearings.
Multi speed motors with speed regulator.
Inlet is equipped with a provision for slide in filters.
